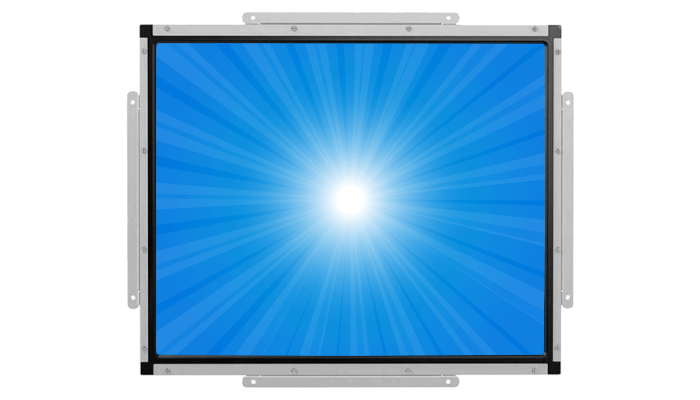

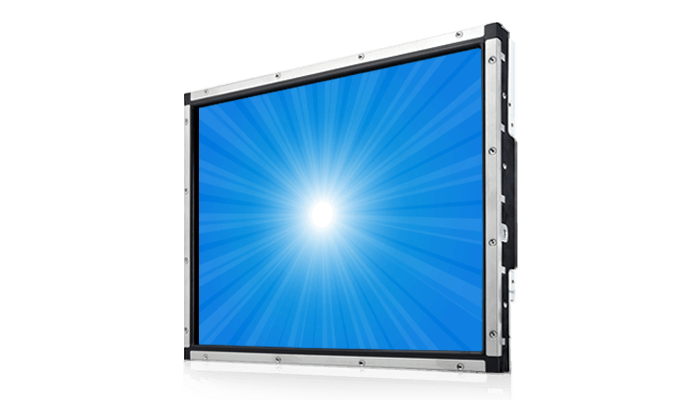

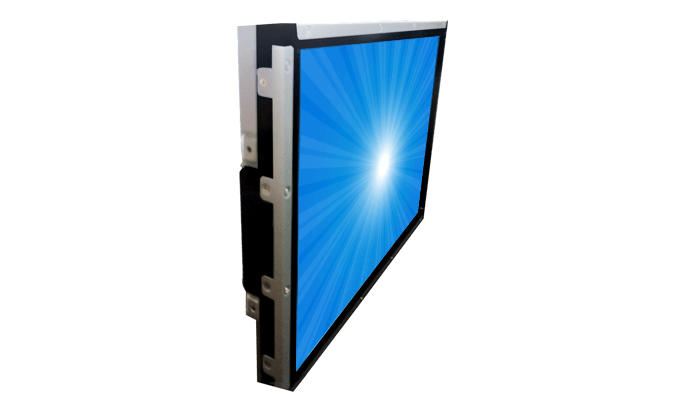

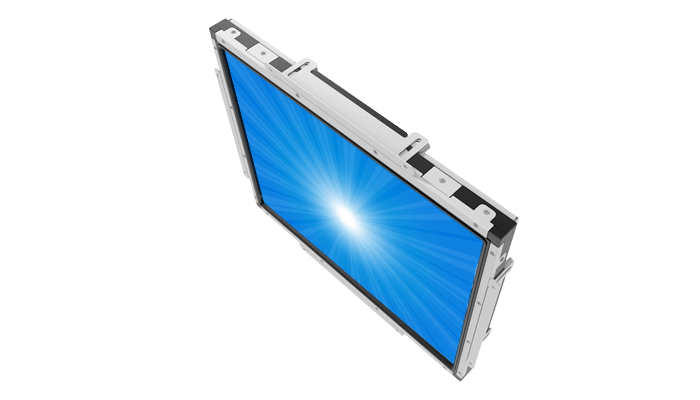

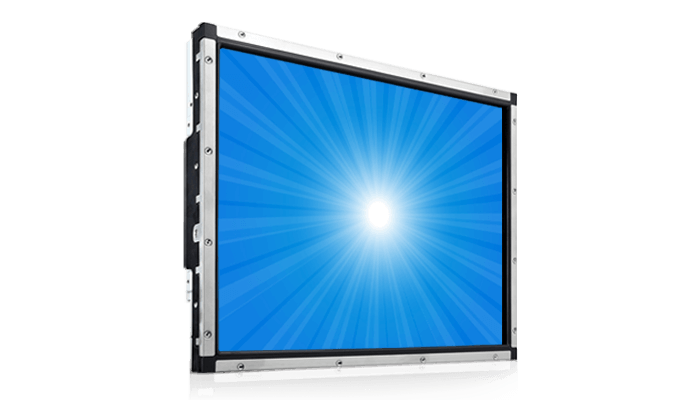

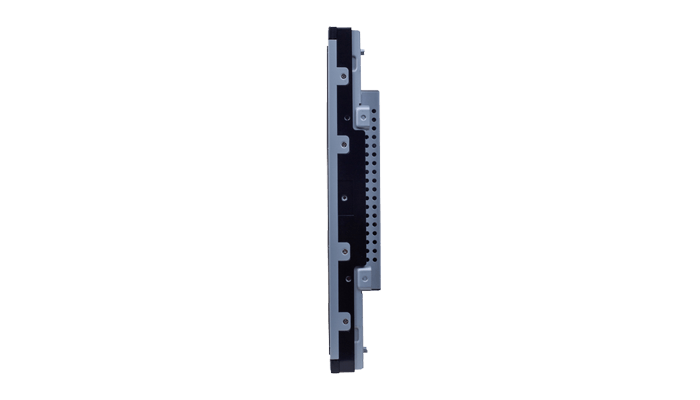

LCD Panel Parameters | Name | 15'' Inch Open Frame Touch Monitor |
Model | OTM155-R04-SUE | |
Display Technology | Active Matrix TFT-LCD with LED Backlight | |
Aspect Ratio | 5:4 | |
Active Area (W × H) | 304.128×228.096mm | |
Native Resolution | 1024×768@60Hz | |
Response Time (Typ.) | 16ms | |
Display Colors | 16.7million | |
Luminance (Typ.) | 300nits; with SAW Touchscreen | |
Contrast Ratio (Typ.) | 800:1 | |
Viewing Angle (Typ.) | Horizontal (left/right) CR≥10 80°/80° | |
Vertical (up/down) CR≥10 80°/80° | ||
Touch Screen Parameters | Touch Technology | SAW Touchscreen |
Surface Treatment | Tempered Strengthened | |
Optional:Anti-glare | ||
Active Area(W × H) | 304.4×228.4.0±0.3mm | |
Thickness(Total) | 2.75±0.2mm | |
Light Transmission | ≥83% | |
Response Time | 10.4ms | |
Touch Screen Interface | USB/RS232 | |
Touch Point | 1 | |
Overal Parameters | Case/Bezel Color | Black |

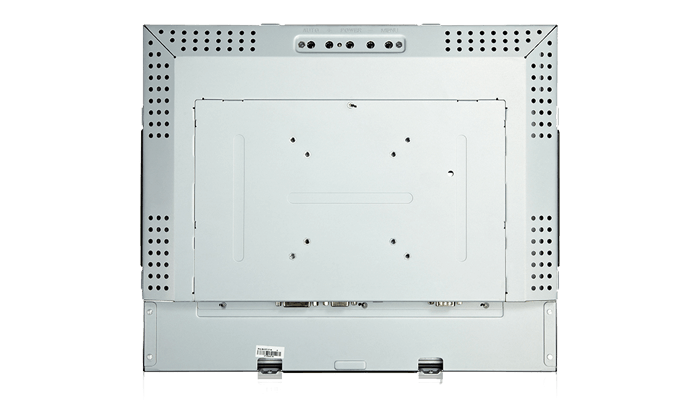

Mounting Options | 75×75 mm;100 x100mm | |
Outline Dimensions（W×H×D） | 336.4mm × 264.4mm× 43.9mm | |
Power Supply | External Adapter: 100-240V AC, 50-60 Hz Input Voltage Range: +12V DC ± 5% | |
On Screen Display (OSD) | Control (back): Power, Auto, Up, Down, Menu | |
Power Consumption | MAX: 25W | |
Speaker | NA | |
Webcam | NA | |
Operating Altitude | ≦3000m | |
Temperature Range | Operating: 0℃ to 40℃, storage: -20℃ to 60℃ | |
Humidity (Non Condensing) | Operating: 20% to 80%, storage: 10% to 90% | |

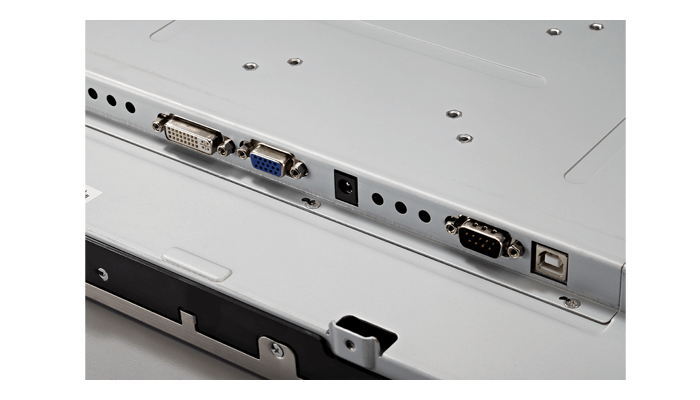

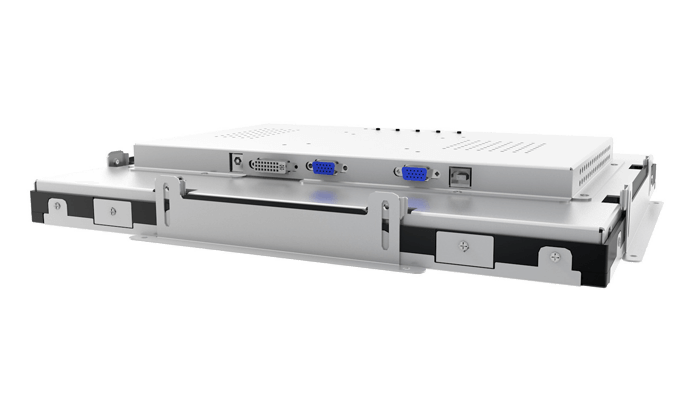

I/O | VGA, DVI, USB (Type B) | |
Accessories | Cables: VGA×1, USB×1, 1.5m Length | |
Carton Box Dimensions | 460mm (L) × 420mm (W) × 150mm (H) | |
Weight | Net: 4.5Kg Gross: 6Kg | |
MTBF | 50,000 hours demonstrated | |
Agency Approvals | CE, FCC | |
Warranty | 1 years |
