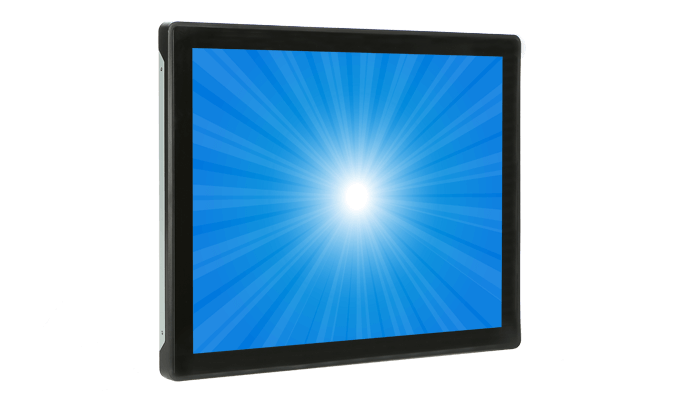

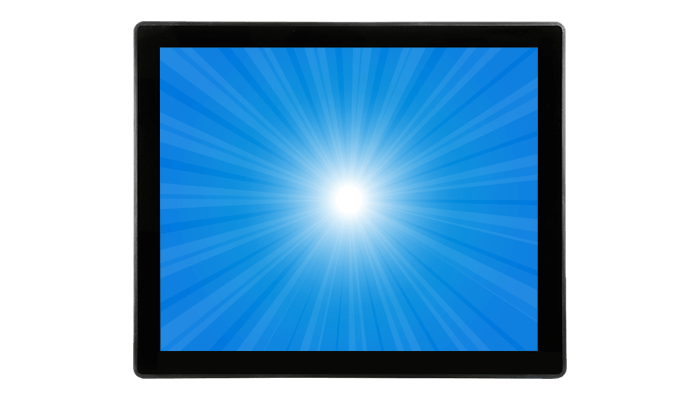

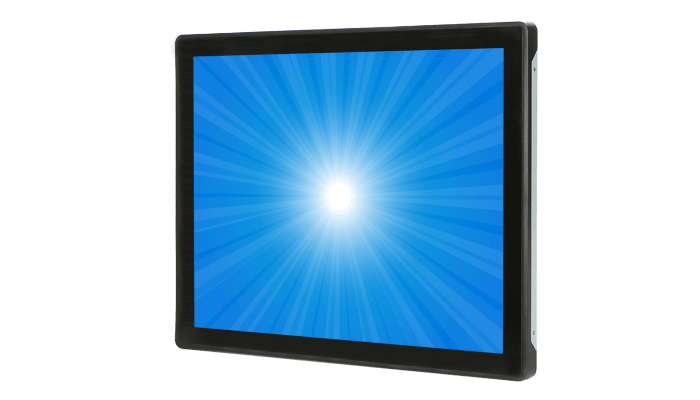

LCD Panel Parameters | Name | 17 Inch Open Frame Touch Monitor |
Model | OTM170-RPC03 | |
Display Technology | Active Matrix TFT-LCD with LED Backlight | |
Aspect Ratio | 5:4 | |
Active Area (H × V) | 337.920× 270.336mm | |
Native Resolution | 1280×1024@60Hz | |
Response Time (Typ.) | 30ms | |
Display Colors | 16.7M | |
Brightness (typical) | 250 cd/m² (Typ.) | |
Contrast Ratio (Typ.) | 1000:1 | |
Viewing Angle (Typ.) | Horizontal (left/right) CR≥10 89°/89° | |
Vertical (up/down) CR≥10 89°/89° | ||
Touch Screen Parameters | Touch Technology | Projected Capacitive (PCAP) |
Surface Treatment | Tempered Strengthened | |
Optional:AG /AR | ||
Thickness(Total) | 2.75±0.2mm | |
Light Transmission | ≥83% | |
Response Time | 8ms | |
Touch Screen Interface | USB | |
Touch Point | 10 | |
Overal Parameters | Case/Bezel Color | Black |
Mounting Options | 75×75 mm | |
Outline Dimensions（W×H×D） | 393.6mm ×326.1mm×42.5mm | |
Power Supply | External Adapter: 100-240V AC, 50-60 Hz Input Voltage Range: +12V DC ± 5% | |

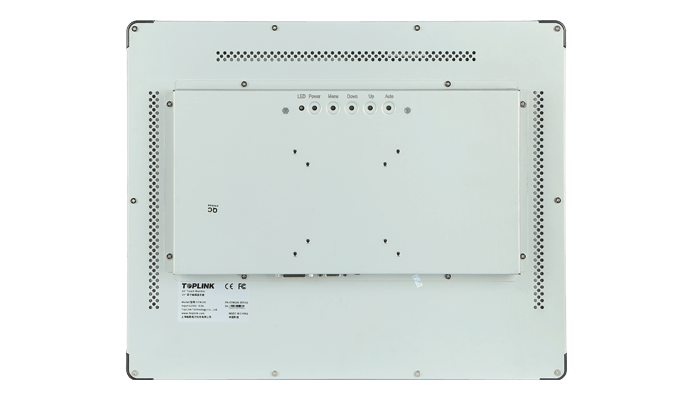

On Screen Display (OSD) | Control (back): Power, Auto, Up, Down, Menu | |
Power Consumption | ≤ 20W (typ.) | |
Speaker | Optional | |
Webcam | Optional | |
Temperature Range | Operating: 0℃ to 50℃, storage: -20℃ to 60℃ | |
Humidity (Non Condensing) | Operating: 20% to 80%, storage: 10% to 90% | |
I/O | VGA, HDMI, USB (DVI,DP optional) | |
Accessories | Cables: HDMI×1, USB×1, 1.8m Length | |
Carton Box Dimensions | 490mm (L) ×150mm (W) × 460mm (H) | |
Weight | Net: 5Kg Gross: 7Kg | |
MTBF | 50,000 hours demonstrated | |
Agency Approvals | CCC, CE, FCC, CB, RoHS,CEC | |
Warranty | 1 year(3/5 Years optional) |
