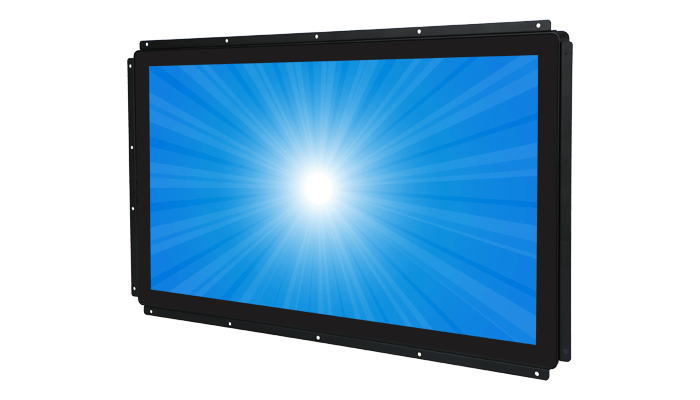

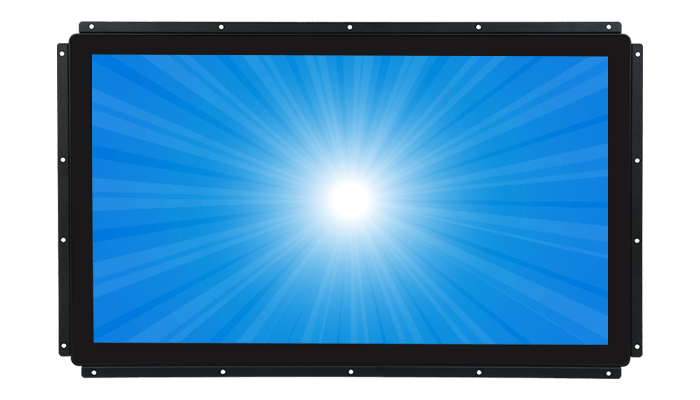

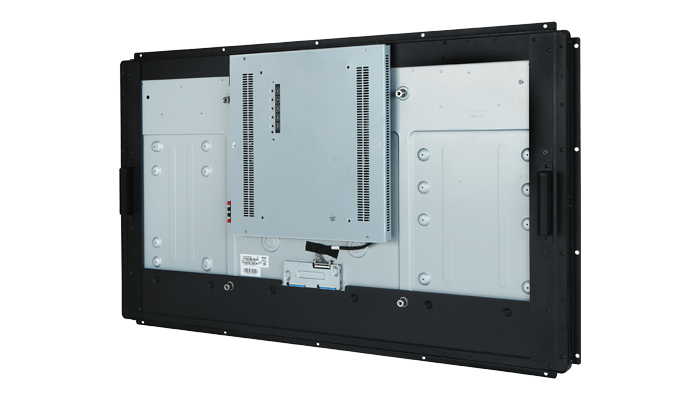

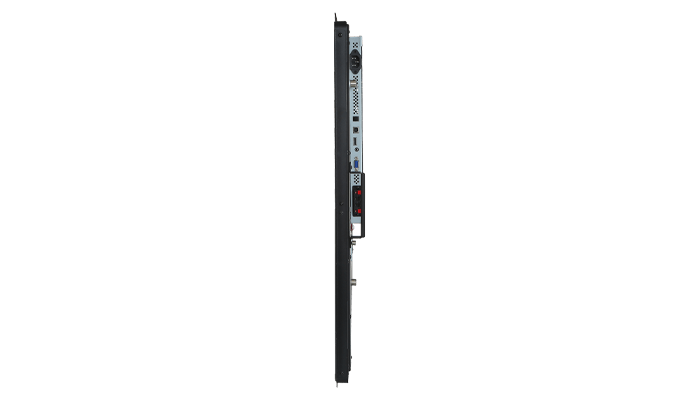

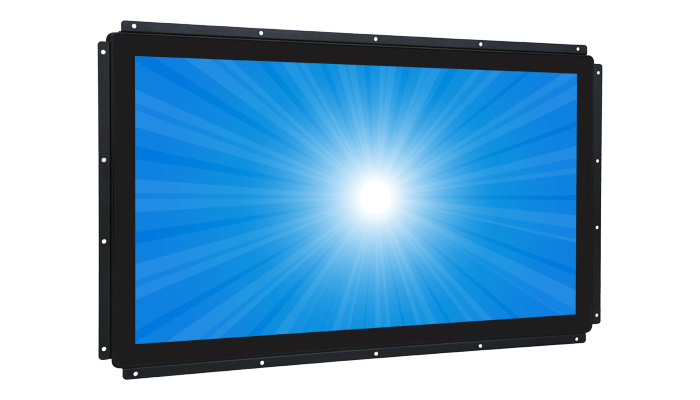

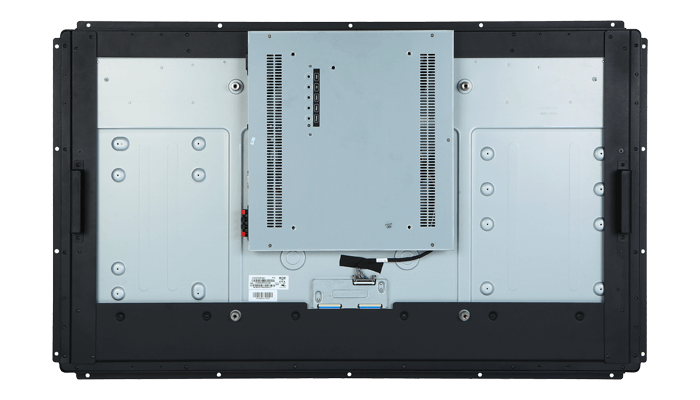

LCD Panel Parameters | Name | 43 Inch Open Frame Touch Monitor |
Model | OTM320-PRC03 | |
Display Technology | Active Matrix TFT-LCD with LED Backlight | |
Aspect Ratio | 16:9 | |
Active Area (W× H) | 697.7×392.26mm | |
Native Resolution | 1920×1080@60Hz | |
Response Time (Typ.) | 6.5ms | |
Display Colors | 16.7million | |
Luminance (Typ.) | 400nits | |
Contrast Ratio (Typ.) | 4000:1 | |
Viewing Angle (Typ.) | Horizontal (left/right) CR≥10 89°/89° | |
Vertical (up/down) CR≥10 89°/89° | ||
Touch Screen Parameters | Touch Technology | Projected Capacitive (PCAP) |
Surface Treatment | Tempered Strengthened | |
Optional:Anti-glare | ||
Active Area(W × H) | 697.7×392.26±0.3mm | |
Thickness(Total) | 2.75±0.2mm | |
Light Transmission | ≥83% | |
Response Time | 16ms | |
Touch Screen Interface | USB | |
Touch Point | 10 | |
Overal Parameters | Case/Bezel Color | Black |
Mounting Options | VESA, 100 x100 /100 x200, M4 | |
Outline Dimensions（W×H×D） | 792.8*487.4*55.45mm | |
Power Supply | External Adapter: 100-240V AC, 50-60 Hz | |
On Screen Display (OSD) | Control (back): Power, Auto, Up, Down, Menu | |
Power Consumption | ≤ 45W (typ.) | |
Speaker | Opions | |
Webcam | Opions | |
Operating Altitude | ≦3000m | |
Temperature Range | Operating:0 °C ~ 50 °C; storage: -20 °C ~ 60 °C, | |
Humidity (Non Condensing) | Operating: 20% to 90%, storage: 10% to 90% | |
I/O | VGA, HDMI, USB | |
Accessories | Cables: HDMI×1, USB×1, 1.8m Length | |
Carton Box Dimensions | 894 x 190 x 575mm(1 PCS) | |
Weight | Net: 17Kg Gross: 21Kg | |
MTBF | 50,000 hours demonstrated | |
Agency Approvals | CE, FCC,CCC,CB,RoHS,CEC | |
Warranty | 1 year(3/5 years opions) |
